INI BAREBONE KEYBOARD (TANPA SWITCH TANPA KEYCAPS

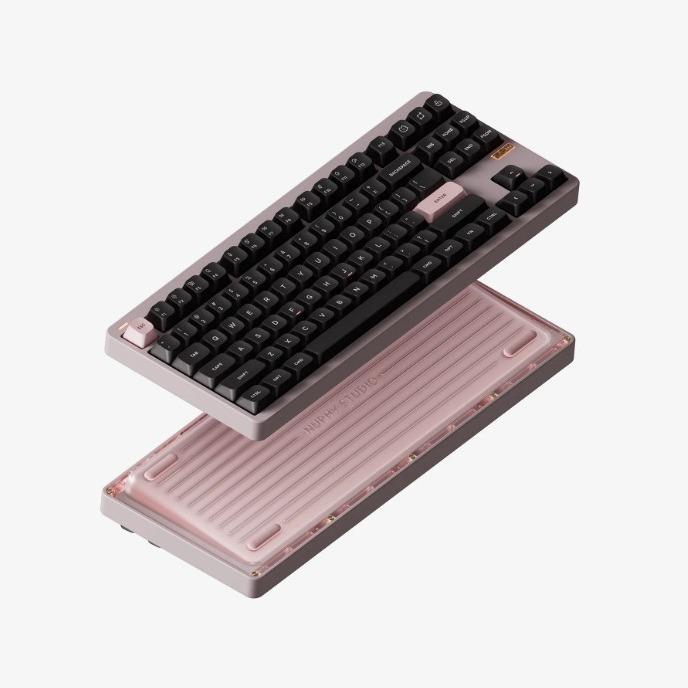

KEYBOARD KIT
1 x Gem80 Keyboard Kit
1 x USB-C Data Cable
1 x 2.4G Receiver (Tri-mode)
1 x Keycap/Switch Puller
3 x Extra Switches
5 x Silicone Sets
1 x Screwdriver
1 x Extra Food Pad Set
1 x Installation Guide Download
1 x Quick Guide Download
1 x Q&A
SPECIFICATION
Layout: ANSI 80%/TKL
Number of Keys: 88
Switch Type: Normal-profile
Stabilizer Type: Plate Mounted
Mount Type: Gasket & Top
Hot-swappable Support: Yes (3/5 pin MX-style)
N-key Rollover Support: Yes
Backlight: South-facing RGB-LED
Backlight Modes: 40+
Compatible System: macOS/Windows/Linux/Android/iOS
Operating Environment: -10 to 50℃
MCU: ARM STM32F072
RF: NRF52810 (tri-mode)
CONNECTION
Wired Polling Rate: 1000Hz
2.4GHz Polling Rate: 1000Hz (tri-mode)
Bluetooth 5.0 Polling Rate: 125Hz (tri-mode)
MATERIALS
Top Case: Aluminum
Bottom Case: PC
Plate Material: Fr4
SIZE AND WEIGHT
Long 141.3 mm (5.56 inches)
Wide 358.1 mm (14.10 inches)
Back Height 36.7 mm (1.44 inches)
Front Height 21.5 mm (0.85 inch)
Weight 1120 grams (2.47 pound)
Type Angle 6º
POWER AND BATTERY (TRI-MODE)
Battery Capacity: 4000mAh
Working Time (all lights on): 24~45 hours (lab test result)
Working Time (homing bars only): 34~70 hours (lab test result)
Working Time (all lights off): Up to 330 hours (lab test result)
